Description

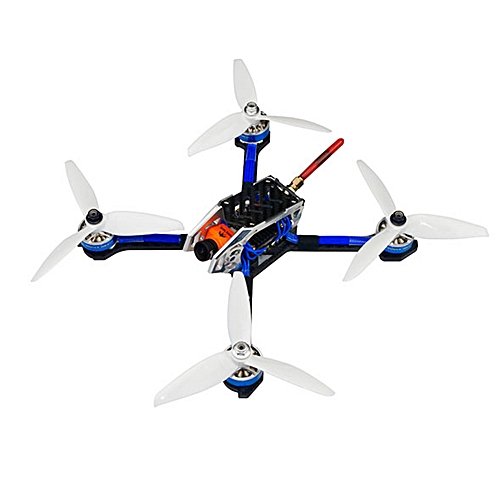

LDARC Kingkong KK 5GT 213mm F4 OSD FPV Racing Drone w/ BL_S 48CH 25/200/600mW VTX Runcam Swift Mini
Specification:
Brand Name: LDARC
Model: KK 5GT
Item Name: 213mm F4 OSD FPV Racing Drone
Version: PNP ( Without Receiver and Battery)
Wheelbase: 213mm
Material: Carbon Fiber & 7075 Aluminum Alloy
Input Voltage: 3-4S
Recommend Battery: 4S 1300-1800mAh above 25C Lipo
Weight: 336.7g (Without Receiver and Battery)
ATTENTION: GOT ITEMS FOR SALE? Post your items, services and properties for sale for FREE and sell faster on our free ads platform..Go here now >>> POST FREE AD
213mm Frame Kit
Wheelbase: 213mm
Material: Carbon Fiber & 7075 Aluminum Alloy
Arm Thickness: 5mm
Weight: 102.5g
KK Super Flytower
FC AIO VTX
Tower Monting Hole: 30.5×30.5mm
Tower Height: 16.5mm ( Include heat sink )
Tower Weight: 28.9g
F4 Flight Controller Integrated with VTX Module:
Chip: STM32f405 MCU
Gyro: MPU6000
Firmware: OMNIBUSF4SD
OSD: Betaflight OSD
With 5V @ 3A ( VTX and FC have been used. Suggest less than 6 LED )
( If use more than 6 LED, please use BEC Module )
Support PPM Recceiver/SBUS/DSMX Receiver
( PPM Receiver need solder the pad)
Channel: 48CH
Power: Off/25/200/600mW ( TX control through the FuriousFPV /Tramp peropheral protocol )
Camera Voltage: 5V
Weight: 11.3g
Size: 36x36mm ( 30.5×30.5mm Mounting Hole)
>>>-----Advertisement-----<<<
ATTENTION: GOT ITEMS FOR SALE? Post your items, services and properties for sale for FREE and sell faster on our free ads platform..Go here now >>> POST FREE AD
KK Super Flytower
40A BLheli_S 4 in 1 ESC
Working Voltage: 2-4S Lipo
Con. Current: 40A
Peak Current: 45A (5S)
Firmware: BLheli_S/Dshot150/DShot300/DShot600 16.6 (G_H_30)
Size:39x41mm ( with pad )
Moutning Hole: 30.5×30.5mm
Weight: 12.5g
Support BLHeliSuite setting
-Integrated PDB,
-Integrated Battery Monitoring
– Integrated FC Power
XT2306 2500KV Motor Model: XT2306
KV: 2500KV
Lipo Battery: Support 3-4S
Shaft: M5
Motor Width: 28mm
Motor Height: 31.7mm
Weight: 34.1g5150 3-Blade Propeller
Kingkong 5150 5 Inch 3-Blade Propeller
Color: White
Quantity: 5 Pairs ( 5 CW & 5 CCW)
FPV Camera
Runcam Swift Mini 600TVL FOV160 CCD Camera NTSC
Package Included:
1x LDARC KK 5GT 213mm Drone
5x 5150 Propeller CW & CCW
1x Magic Tie
4x Motor Base
1x Antenna
5x Strap
1x Manual
