Generic TA YUZUN 2 4 8 Channel Network Camera HD 720P CCTV System WIFI Surveillance Kit -white

>>>- -Advertisement- -<<<

Descriptions:
Camera
Image sensor:1/4 Inch
Camera lens: standard 3MP 6mm MTV lenses
Minimum illumination: 1 Lux @F1.2 black and white 0.01 Lux @ F1.2 (illumination can open infrared lights for 0Lux)
AWB/AGC/AE/AIC automatic control, automatic night type filter switch

Video and audio
Main Profile video compression:H.264 @ Level 4.1 / Motion JPEG
Main processor:High performance DSP
Effective pixel:1280 (H) *720 (V)
Maximum resolution:1280*720
Video streaming:multiple H.264 and M-JPEG video streams: at maximum resolution, output multiple video streams at the maximum frame rate of 25 FPS and automatically adjust 1~25fps frame rate according to the WIFI signal

System
Infrared distance:40-70 meters
The connection mode:supports wireless hotspot AP mode, WiFi mode and connected to the wired network connection mode
Network interface:1 RJ45 10Base-T/100Base-TX
WiFi supports:WiFi network cascade
Power:DC12V
Power consumption:＜10W
Working environment temperature:-20℃～+55℃（
Humidity:≤ 95%
Protective grade:IP67

>>>-----Advertisement-----<<<

NVR
Video input:4 way video input network compression/8 road network video input
Dual stream set:the range (128kbps-12Mbps)
Frame rate NTSC system: 30fps/s PAL system: 25fps/s
The resolution:720P (1280*720)
Video mode:manual / timing / motion detection / alarm video
Backup mode:U disk, mobile hard disk, USB burn
Video saved:local hard disk, remote video
Audio output:1 way RCA
Video output:1 channel VGA/HDMI, the highest resolution up to 1920*1080 1 CVBS, up to D1 resolution
The network interface:1 RJ45 10/100M adaptive Ethernet port
RS485 interface:full duplex standard 485 interface, support a variety of PTZ protocol, support rocker keyboard control PTZ
USB interface:3 USB 2.0 (front panel 1, tail plate 2)
Storage:1 SATA interface, maximum support 4TB hard disk interface
Remote monitoring client browser, and P2P access support
Power consumption :≤30W
Operating system:for LINUX
Image coding:standard H.264 Main Profile

Specifications:
Brand: YUZUN
Model: YZ-W301L4-2C1MP, YZ-W301L4-4C1MP, YZ-W301L8-8C1MP
Camera Color: white
NVR Color: black
Camera Size:190*100*57mm
NVR Size:320*250*50mm
Plug:UK Plug

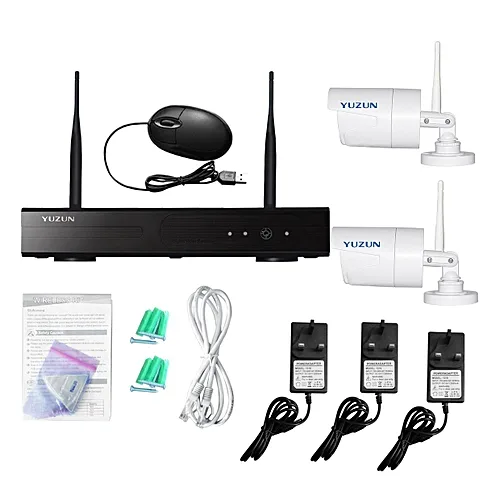

Package included:
1x NVR
1x Power Supply For NVR
2/4/8x Cameras
2/4/8x Power Supply For Camera
1x Mouse
2/4/8x Pack Screws
1x Manual

Noted:
The product showed has different kinds of package quantities. Please choose it as you like. Any information uncertain , please contact us, Many thanks.
