Generic Brushless ESC Remote Control Airplane Model Accessory Electronic Speed Controller For RC Drone Electronic Speed Controller

Description

Features:
Safe Power-on Function: When the power is turned on, the motor will not start immediately so as to avoid personal injury, no matter where the throttle lever is.
Throttle Stroke Calibration Function: Adapt to the difference of different remote controllers’ throttle stroke and improve the linearity of throttle response.
Undervoltage Protection: It is set by user through the program. When battery voltage is lower than protection threshold, ESC automatically reduces output power.
Overvoltage Protection: Input voltage is outside the allowable range of input. It is not activated and will automatically protect and make a short alert tone.
Overheat Protection: Built-in temperature detection circuit, when the temperature of MOS tube is too high, ESC will automatically be turned off.
Remote Control Signal Loss Protection: After 1 second, the remote control signal is powered off, and after 2 seconds, the output is turned off, no remote control signal.

>>>- -Advertisement- -<<<

Specification:
Condition: 100% New
Item Type: RC Accessory
Material: Plastic + Metal
Weight: Approx. 11-90g
Optional Type: 12A, 20A, 30A, 40A, 50A, 60A, 80A
Program Setting Items (Can be set by remote throttle lever or LED parameter setting card):
Brake Setting: No Brake/Brake
Battery Type: Lithium Battery / Ni-MH Battery
Low Voltage Protection Mode: Soft Turn Off / Hard Turn Off
Low Voltage Protection Threshold: Low / Medium / High
Start Mode: Normal / Soft Start / Super Soft Start
Advance Angle: Low / Medium / High
Restore Factory Defaults

12A:
Output Capacity: Constant Current 12A, Short-time Current 15A (No less than 10 seconds)
Power Input: 2S Lithium Battery Pack or 5-6 NiMH/NiCd Battery Pack
BEC Output: 5V @ 1A (Linear Regulator Mode – Linear Mode)
Maximum Speed: 210,000 RPM for 2-pole Motor, 7000 RPM for 6-pole Motor and 35,000 RPM for 12-pole Motor
Size: Approx. 38 * 18 * 7mm / 1.50 * 0.71 * 0.28inch
Weight: Approx. 11g

20A:
Output Capacity: Constant Current 20A, Short-time Current 25A (No less than 10 seconds)
Power Input: 2-3S Lithium Battery Pack or 5-9S NiMH/NiCd Battery Pack
BEC Output: 5V @ 2A (Linear Regulator Mode – Linear Mode)
Maximum Speed: 210,000 RPM for 2-pole Motor, 7000 RPM for 6-pole Motor and 35,000 RPM for 12-pole Motor
Size: Approx. 42 * 25 * 8mm / 1.65 * 0.98 * 0.31inch
Weight: Approx. 19g

>>>-----Advertisement-----<<<

30A:
Output Capacity: Constant Current 30A, Instantaneous Current 40A (No less than 10 seconds)
Power Input: 2-3S Lithium Battery Pack or 5-9S NiMH/NiCd Battery Pack
BEC Output: 5V @ 2A (Linear Regulator Mode – Linear Mode)
Throttle Signal Frequency Range (Refresh Rate): 50Hz-432Hz
Maximum Speed: 210,000 RPM for 2-pole Motor, 7000 RPM for 6-pole Motor and 35,000 RPM for 12-pole Motor
Size: Approx. 68 * 25 * 8mm / 2.68 * 0.98 * 0.31inch
Weight: Approx. 37g

40A:
Output Capacity: Constant Current 40A, Short-time Current 55A (No less than 10 seconds)
Power Input: 2-3S Lithium Battery Pack or 5-9S NiMH/NiCd Battery Pack
BEC Output: 5V @ 3A (Linear Regulator Mode – Linear Mode)
Maximum Speed: 210,000 RPM for 2-pole Motor, 7000 RPM for 6-pole Motor and 35,000 RPM for 12-pole Motor
Size: Approx. 68 * 25 * 8mm / 2.68 * 0.98 * 0.31inch
Weight: Approx. 39g

50A:
Constant Current: 50A
Burst Current (> 10S): 65A
BEC Mode: Switching
BEC Output: 5V / 5A
BEC Output Capability (2S Lipo): 5 Servo Systems
BEC Output Capability (3S Lipo): 5 Servo Systems
BEC Output Capability (4S Lipo): 5 Servo Systems
Battery (Lipo): 2-4S
Battery Unit (NiM NiCd): 5-12 Batteries
Size: Approx. 65 * 25 * 12mm / 2.56 * 0.98 * 0.47inch
Weight: Approx. 43g

60A:
Output Capacity: Constant Current 60A, Short-time Current 80A (No less than 10 seconds)
Power Input: 2-6S Lithium Battery Pack or 5-118S NiMH/NiCd Battery Pack
BEC Output: 5V @ 5A (Built-in Switching Regulator Mode BEC)
Throttle Signal Frequency Range (Refresh Rate): 50Hz-432Hz
Maximum Speed: 210,000 RPM for 2-pole Motor, 7000 RPM for 6-pole Motor and 35,000 RPM for 12-pole Motor
Size: Approx. 77 * 35 * 14mm / 3.03 * 1.38 * 0.55inch
Weight: Approx. 63g

80A:
Output Capacity: Constant Current 80A, Short-time Current 100A (No less than 10 seconds)
Power Input: 2-6S Lithium Battery Pack or 5-118S NiMH/NiCd Battery Pack
BEC Output: 5V @ 5A (Built-in Switching Regulator Mode BEC)
Throttle Signal Frequency Range (Refresh Rate): 50Hz-432Hz
Maximum Speed: 210,000 RPM for 2-pole Motor, 7000 RPM for 6-pole Motor and 35,000 RPM for 12-pole Motor
Size: Approx. 86 * 38 * 12mm / 3.39 * 1.50 * 0.47inch
Weight: Approx. 82g

Package list:

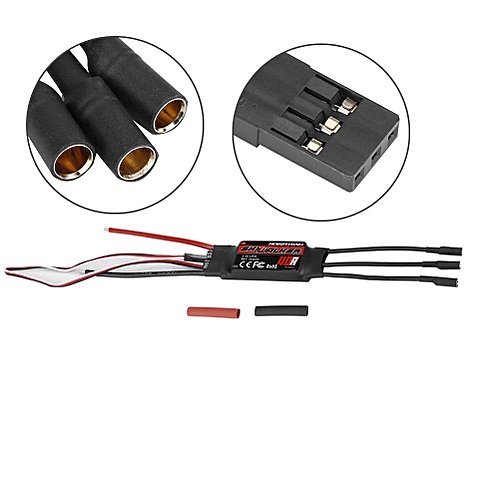

1 * ESC
or
1 * ESC
1 * Manual
2 * Hot and Cold Tubes

Note:
Some players install ESC directly on the RC plane. As a result, they heard the explosive sound, the motor did not turn or the speed did not rise. Reasons are as follows:
Maximum and minimum stroke of remote controller need to be identified at the first time to use ESC. As shown below:
Connect the ESC to motor—-Connect the wires to receiver—-Open remote controller and push throttle to the highest point—-Insert the ESC into battery—-Hear the sound—-di—-didi—-Pull throttle lever to the lowest point—-Hear the sound dididi—-Done.
The three wires of brushless ESC can be connected at random. If the steering is not correct, you can adjust any two of them.
