Description
BOGUANG 18V 100w Monocrystalline silicon cell solar panel module Tempered glass Aluminum frame for 12v battery power charger
>>>-
-Advertisement-
-<<<
Russia, Canada, Australia Our stores have overseas warehouses where customers in these countries do not need to be cleared and fast delivery from local warehouses.
ATTENTION: GOT ITEMS FOR SALE? Post your items, services and properties for sale for FREE and sell faster on our free ads platform..Go here now >>> POST FREE AD
Packing list
>>>-----Advertisement-----<<<
ATTENTION: GOT ITEMS FOR SALE? Post your items, services and properties for sale for FREE and sell faster on our free ads platform..Go here now >>> POST FREE AD
1、1pcs 100w Glass solar panel

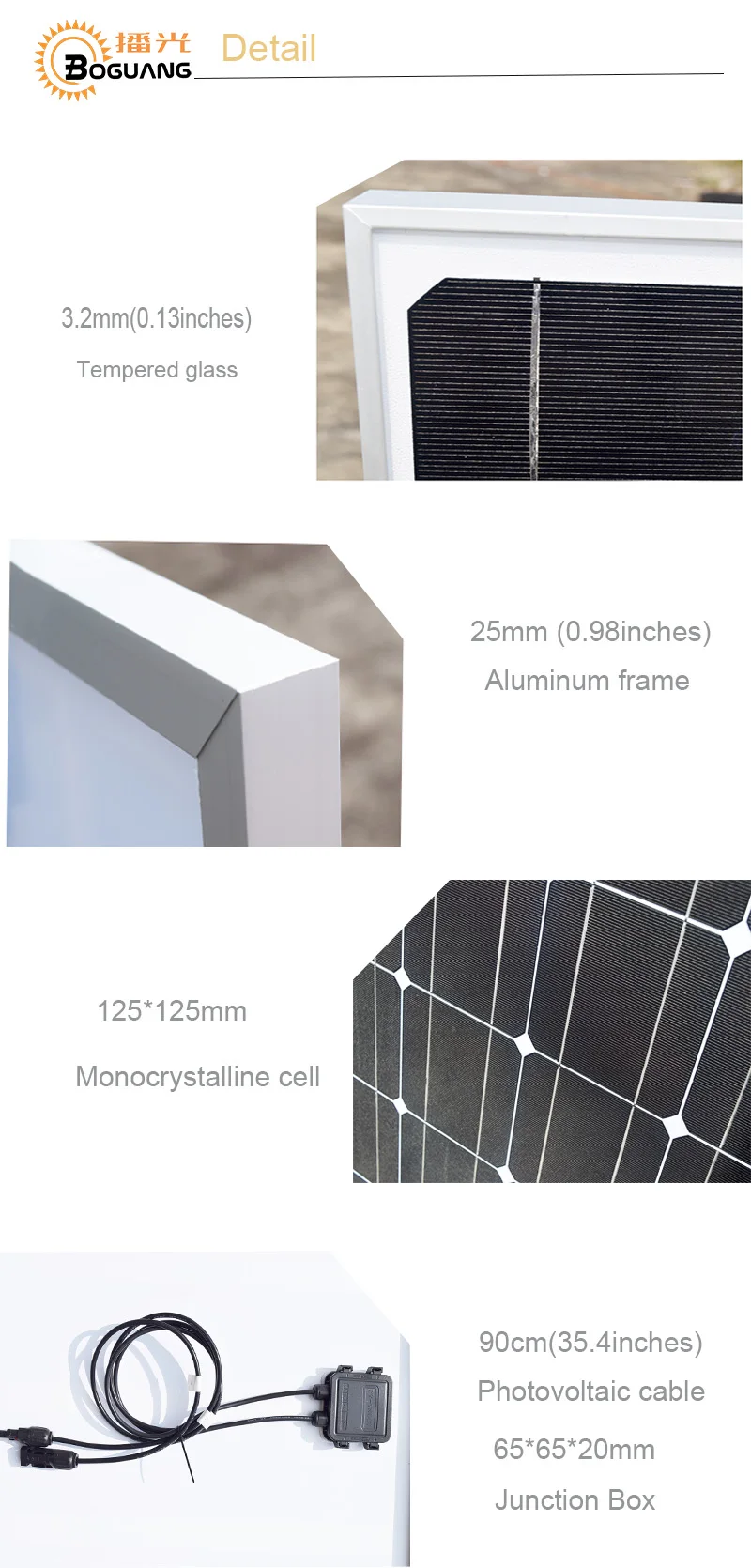

Specification
| Rated Power | 100 Watt |
| Vmp | 18Voltage |
| Voc | 21.6 Voltage |
| Short circuit current (Isc) | 6.06 A |
| Working current (Imp ) | 5.55A |
| Output Tolerance | ±3% |
| Max System Voltage | 1000V DC(IEC)/600V DC (UL) |
| Diode | 2 By Pass |
| Junction Box | IP 65 Rated |
| Temperature range | -40 Degree to 80 Degree |
| Frame | Heavy And Solid Aluminum Alloy |
| Kind of Glass | 3.2 MM Tempered glass |
| Output Cable | 2.5MM 90MM(0.09*3.54Inches) |
| Dimensions | 1175*530*25MM |
| Weight | 6.5Kg |

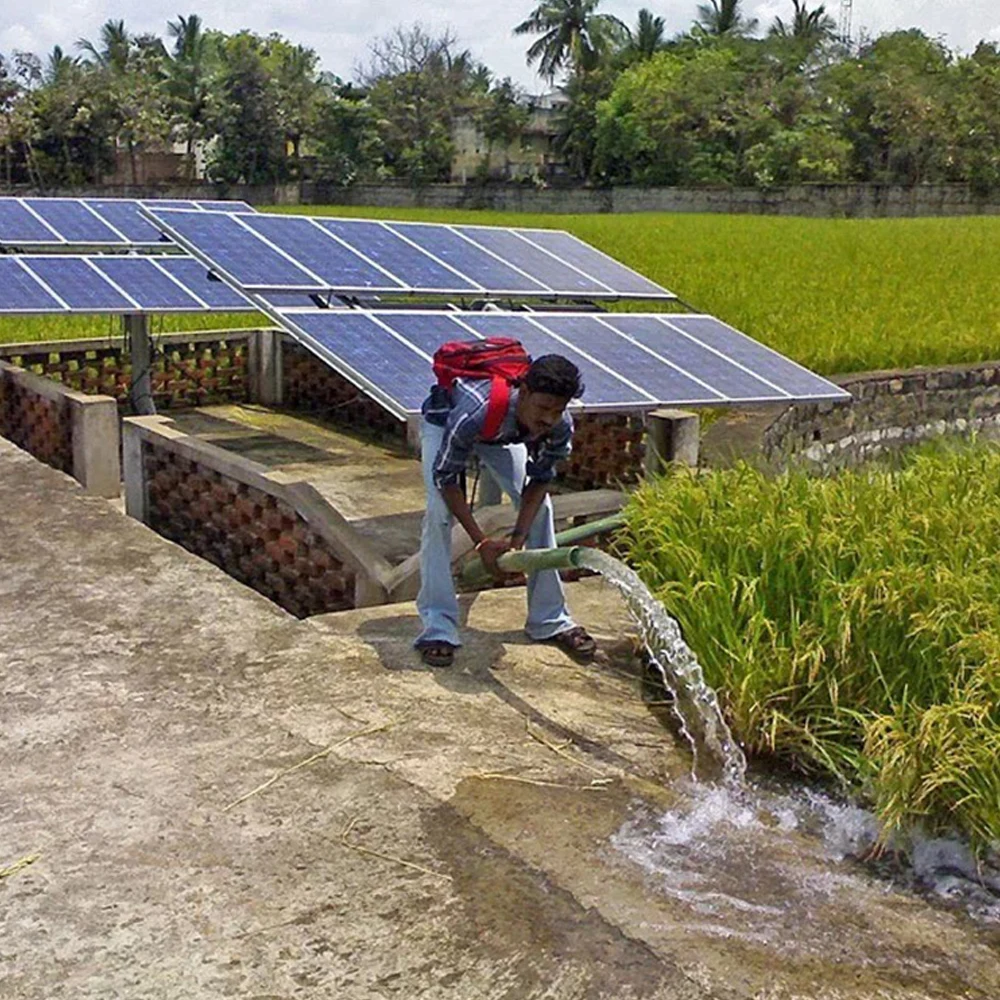

Applications
Process
About us
